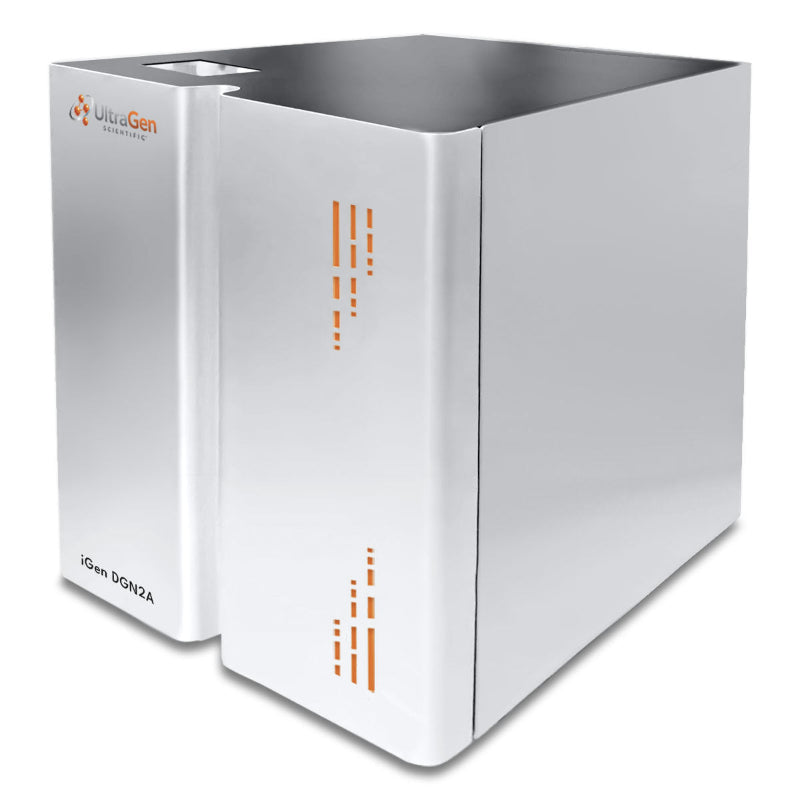

iGen DGN2A Dual Gas Generator
Designed specifically for Shimadzu applications, the iGen DGN2A is a Dual-Gas system providing nitrogen and dry air for Shimadzu LCMS 8045, 8050, and 8060 instruments.
The iGen DGN2A is a self-contained system primarily for LC-MS applications, featuring integrated compressors able to deliver laboratory-grade nitrogen and clean dry air at pressures up to 100psi, and flow rates of 25LPM N2 & 25LPM dry air.
MS, MSA, MSABC
Bloomingdale's, more, more
Shipping
Orders can take 2-3 business days to process before shipping. As soon as your package has left our warehouse, you will receive a confirmation by email.
Returns
If for any reason you are unhappy with your purchase we offer returns for store credit within 7 days of delivery. If 7 days have passed since your purchase has been delivered, unfortunately, we are unable to offer you a credit or exchange.
Features
- Simple plug-n-play installation
- Small enough to fit under the bench
At less than 27" high it saves lab space. (55cm x 76cm x 69cm) - Alarmed working status monitoring
Real time monitoring of instrument operational status, with built-in Pressure & Temperature alarms, plus routine maintenance reminders. - Stable & Reliable Operation
Multi-air compressor configuration automatically matches demand, prolonging equipment service life, and enhancing stability. - Advanced moisture monitoring & removal
The iGen DGN2A has an innovative, alarmed moisture monitoring sensor system in addition to a three-stage water removal system.
Add details about your product here.
Add shipping and delivery information here.
| Max Flow Rate | N2 - 25L/min Air – 25L/min |
| Max Pressure | N2 – 100 psi /7 bar Air - 116 psi / 8 bar |
| Max Relative Humidity | 80% Non-Condensing |
| Max Altitude | 2000m |
| Particles | <0.01µm |
| Gas Outlets | 1/4 BSP x 6mm |
| Phthalates | None |
| Suspended Liquids | None |
| Operating Temperature | 2°C - 35°C / 31.6°F - 41°F |
| Electrical Requirements | 220VAC ± 10% 50/60Hz 1Ø |
| Power Consumption | 1.8Kw |
| Dimensions (WxDxH) | 760mm x 552mm x 690mm / 30" x 22" x 27" |
| Weight | 115Kg/254lbs |
| Noise | ≤62Db |
| Compatibility | Shimadzu LCMS 8045, 8050, 8060 |
