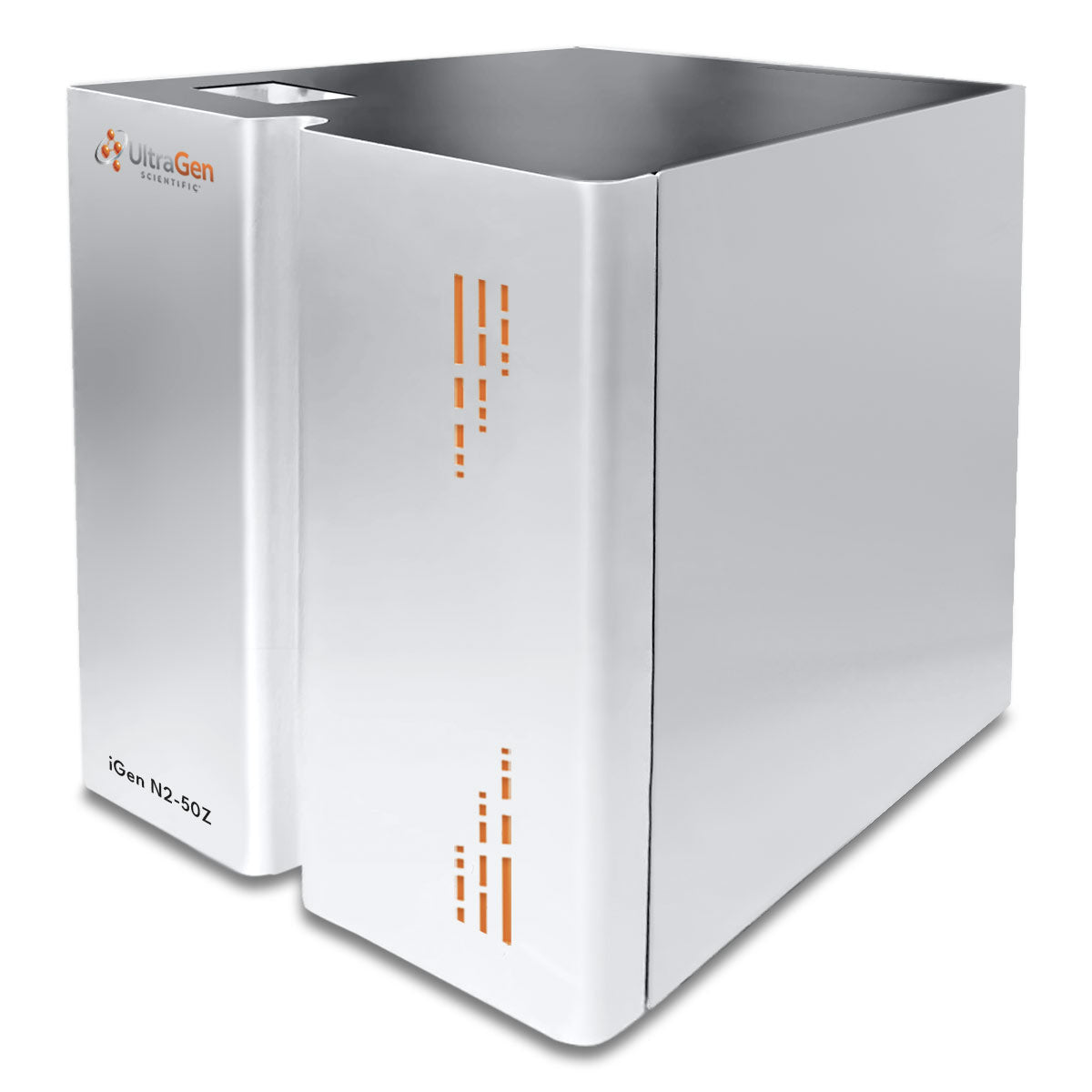

iGen N2-50Z Nitrogen Generator (50LPM)
The UltraGen iGen N2-50Z Nitrogen generator has been specifically designed to meet the gas flow, purity and pressure requirements of the majority of LCMS instruments up to 50LPM. It uses tried and tested separation membrane technology and internal compressors to generate laboratory grade nitrogen on demand, negating the need for an external air source. Built with quality components and designed for ease of use, it will slide under a standard lab bench and is fitted with heavy duty castors for easy mobility.
MS, MSA, MSABC
Bloomingdale's, more, more
Shipping
Orders can take 2-3 business days to process before shipping. As soon as your package has left our warehouse, you will receive a confirmation by email.
Returns
If for any reason you are unhappy with your purchase we offer returns for store credit within 7 days of delivery. If 7 days have passed since your purchase has been delivered, unfortunately, we are unable to offer you a credit or exchange.
Features
- Simple plug-n-play installation
- Small enough to fit under the bench
At less than 27" high, it saves lab space. (55cm x 76cm x 69cm) - Alarmed working status monitoring
Real time monitoring of instrument operational status, with built-in Pressure & Temperature alarms, plus routine maintenance reminders. - Stable & Reliable Operation
Multi-air compressor configuration automatically matches demand, prolonging equipment service life, and enhancing stability. - Advanced moisture monitoring & removal
The iGen N2-50Z has an innovative, alarmed moisture monitoring sensor system in addition to a three-stage water removal system. - No health & safety concerns of changing out pressurized cylinders
Add details about your product here.
Add shipping and delivery information here.
| Max Flow Rate | 50L/min |
| Max Pressure | 116 psi / 8 bar |
| Max Relative Humidity | 80% Non-Condensing |
| Max Altitude | 2000m |
| Particles | <0.01µm |
| Gas Outlets | 1/4 BSP x 6mm |
| Phthalates | None |
| Suspended Liquids | None |
| Operating Temperature | 2°C - 35°C / 31.6°F - 41°F |
| Electrical Requirements | 220VAC ± 10% 50/60Hz 1Ø |
| Power Consumption | 2.1Kw |
| Dimensions (WxDxH) | 760mm x 552mm x 690mm / 30" x 22" x 27" |
| Weight | 130Kg/287lbs |
| Noise | ≤62Db |
| Compatibility | Majority of LCMS instruments up to 50LPM |
