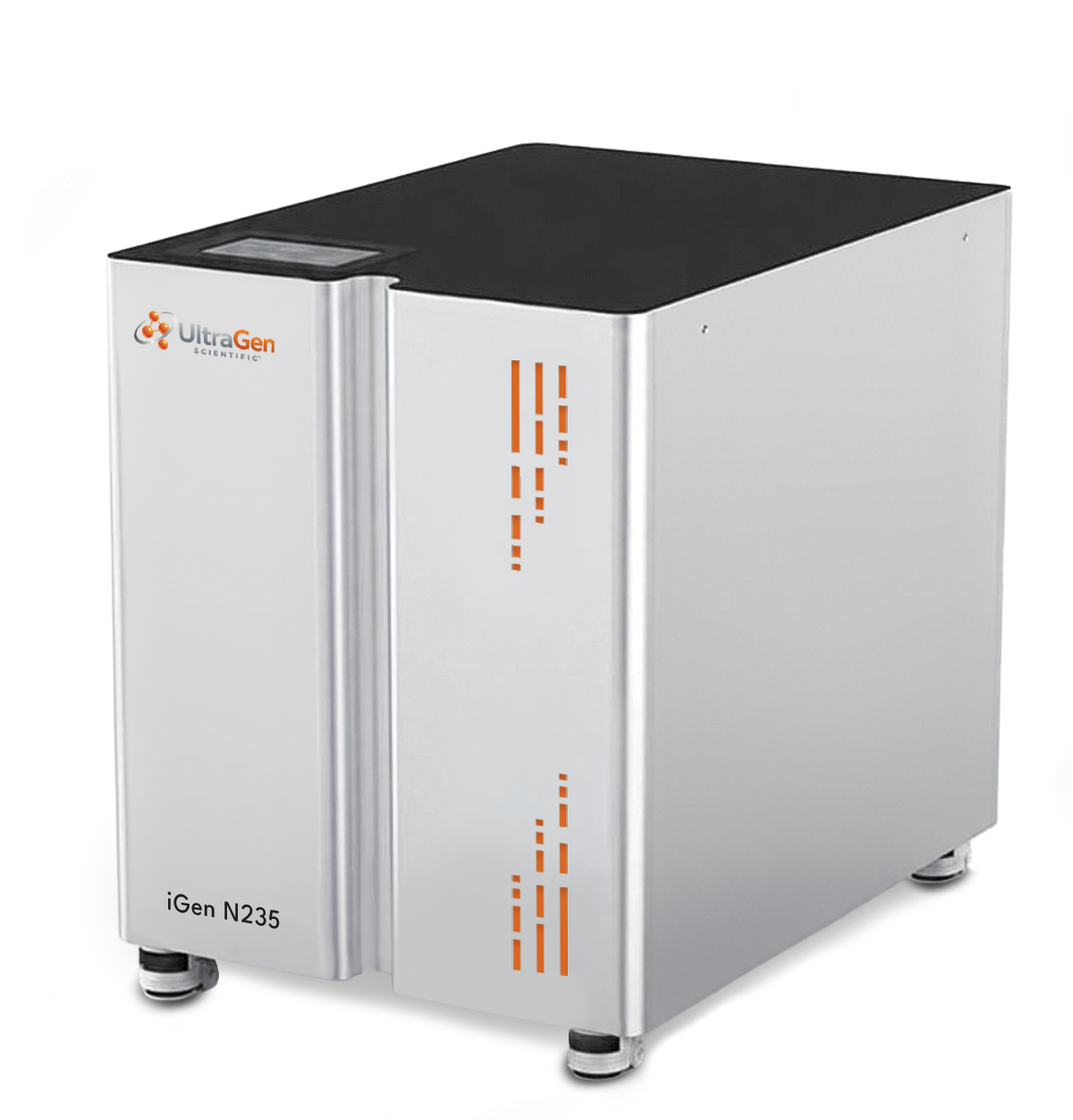

Nitrogen Generator N2-35
The UltraGen iGen N2-35 Nitrogen generator has been specifically designed to meet the gas flow, purity and pressure requirements of the majority of LCMS instruments. It uses tried and tested separation membrane technology and internal compressors to generate laboratory grade nitrogen on demand, negating the need for an external air source.
Built with quality components and designed for ease of use, it will slide under a standard lab bench and is fitted with heavy duty castors for easy mobility.
MS, MSA, MSABC
Bloomingdale's, more, more
Shipping
Orders can take 2-3 business days to process before shipping. As soon as your package has left our warehouse, you will receive a confirmation by email.
Returns
If for any reason you are unhappy with your purchase we offer returns for store credit within 7 days of delivery. If 7 days have passed since your purchase has been delivered, unfortunately, we are unable to offer you a credit or exchange.
Features
O Simple plug-n-play installation
O Small enough to fit under the bench
At less than 27” high, it saves lab space.
(55cm x 76cm x 69cm)
O Alarmed working status monitoring
Real time monitoring of instrument operational status,
with built-in Pressure & Temperature alarms, plus
routine maintenance reminders.
O Stable & Reliable Operation
Multi-air compressor configuration automatically
matches demand, prolonging equipment service
life, and enhancing stability.
O Advanced moisture monitoring & removal
The iGen N2-35 has an innovative, alarmed moisture
monitoring sensor system in addition to a three-stage
water removal system.
O No health & safety concerns of changing out
pressurized cylinders.
Nitrogen
Add technical specifications here.
Max Flow Rate 35L/min
Max Pressure 116 psi / 8 bar
Max Relative Humidity 80% Non-Condensing
Max Altitude 2000m
Particles <0.01μm
Gas Outlets 1⁄4 BSP x 6mm
Phthalates None
Suspended Liquids None
Operating Temperature 2°C - 35°C / 31.6°F - 41°F
Electrical Requirements 220VAC ± 10% 50/60Hz 1Ø
Power Consumption 1.8Kw
Dimensions (WxDxH) 760mm x 552mm x 690mm 30” x 22” x 27”
Weight 115Kg/254lbs
Noise ≤62Db
