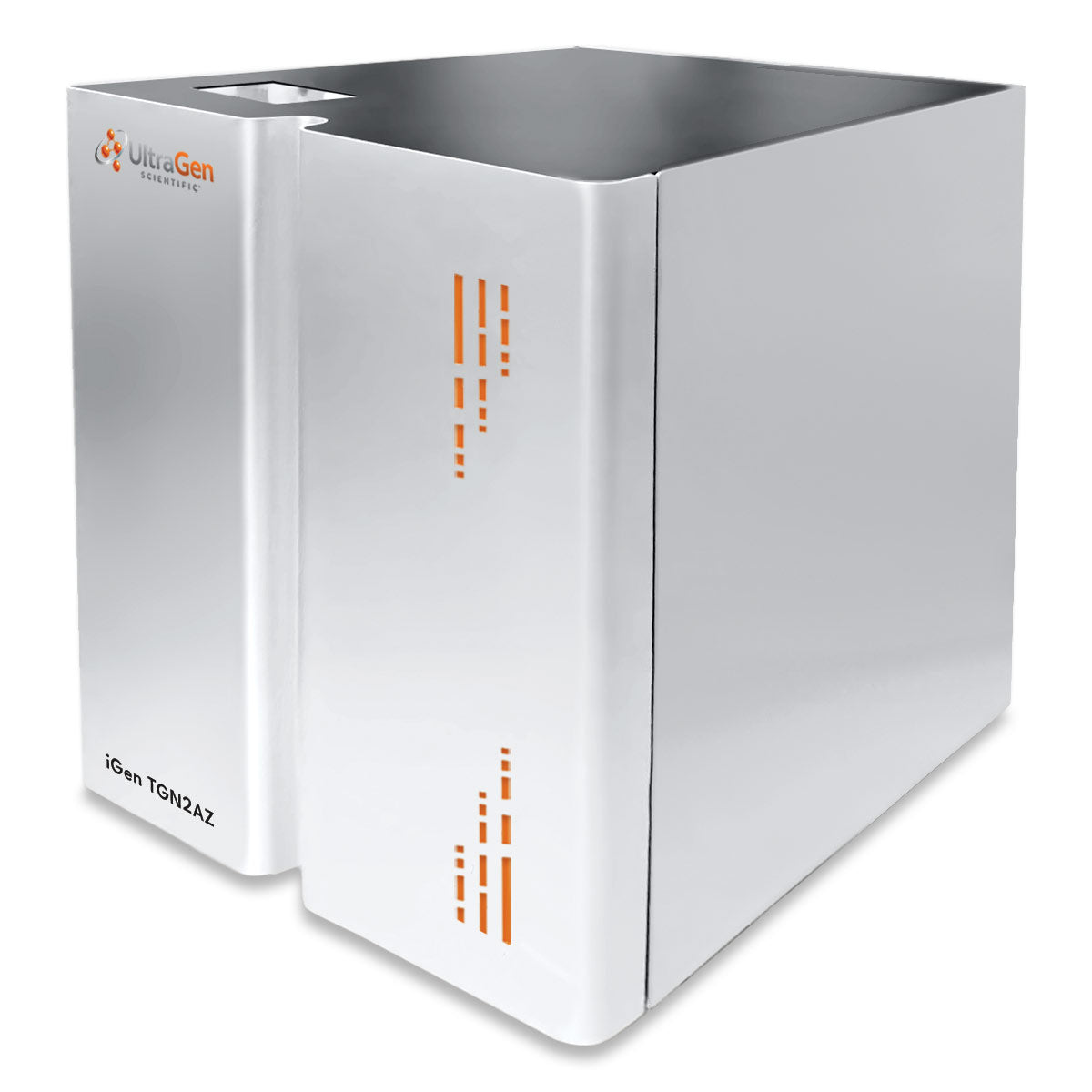

iGen TGN2AZ High Flow TriGas Generator
Designed specifically for SCIEX applications, the iGen TGN2AZ is a High Flow TriGas system providing nitrogen and dry air to supply curtain, source, and exhaust gases. This generator is compatible with a wide range of SCIEX LCMS instruments up to and including the 5600 Triple Quad™ 7500. Designed mainly for LCMS applications, the iGen TGN2AZ is a self-contained system featuring integrated compressors able to deliver laboratory grade nitrogen at various pressures and flow rates as required by the manufacturers.
MS, MSA, MSABC
Bloomingdale's, more, more
Shipping
Orders can take 2-3 business days to process before shipping. As soon as your package has left our warehouse, you will receive a confirmation by email.
Returns
If for any reason you are unhappy with your purchase we offer returns for store credit within 7 days of delivery. If 7 days have passed since your purchase has been delivered, unfortunately, we are unable to offer you a credit or exchange.
Features
- Simple plug-n-play installation
- Small enough to fit under the bench
At less than 27" high, it saves lab space. (55cm x 76cm x 69cm) - Alarmed working status monitoring
Real time monitoring of instrument operational status, with built-in Pressure & Temperature alarms, plus routine maintenance reminders. - Stable & Reliable Operation
Multi-air compressor configuration automatically matches demand, prolonging equipment service life, and enhancing stability. - Advanced moisture monitoring & removal
The iGen TGN2AZ has an innovative, alarmed moisture monitoring sensor system in addition to a three-stage water removal system.
Add details about your product here.
Add shipping and delivery information here.
| Max Flow Rate | Curtain - 26L/min Source – 25L/min Exhaust – 26L/min |
| Max Pressure | Curtain – 60 psi Source - 110 psi Exhaust - 60psi |
| Max Relative Humidity | 80% Non-Condensing |
| Max Altitude | 2000m |
| Particles | <0.01µm |
| Gas Outlets | 1/4 BSP x 6mm x 3 |
| Phthalates | None |
| Suspended Liquids | None |
| Operating Temperature | 2°C - 35°C / 31.6°F - 41°F |
| Electrical Requirements | 220VAC ± 10% 50/60Hz 1Ø |
| Power Consumption | 2.1Kw |
| Dimensions (WxDxH) | 760mm x 552mm x 690mm / 30" x 22" x 27" |
| Weight | 130Kg/287lbs |
| Noise | ≤62Db / 3,420 BTU/Hr |
| Compatibility | SCIEX LCMS instruments up to and including the 5600 Triple Quad™ 7500 |
Add any additional information here.
